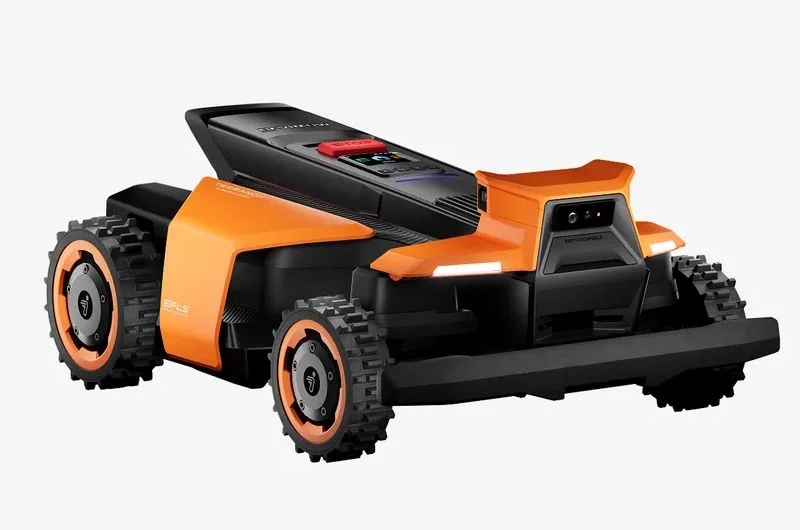

Navimow 6 acre Terranox CM240M1 robotic mower

rr

Navimow Terranox is engineered for large-scale commercial lawn care. It delivers intelligent, efficient, and eco-friendly mowing performance designed to reduce labor, lower operating costs, and maintain consistent turf quality across demanding environments.

rr

Features

r

r
• Easy Setup – No antenna required, automatic mapping – Terranox is ready to work straight out of the box. It automatically detects boundaries and creates freehand maps with a simple drop-and-go process. GeoSketch™ provides real-scene maps and intuitive edge editing for fast, accurate setup.

r

• All-Terrain Mastery – AWD system – Handles slopes up to 40 degrees (84%) – Unrivaled power. With an advanced all-wheel-drive system, Terranox confidently handles uneven ground, rugged paths, and slopes up to 40° (84%), maintaining traction and stability without damaging turf.

r

• Intelligent Object Detection – VisionFence (260 degree RGB camera + ToF) – Terranox delivers panoramic obstacle avoidance with high sensitivity. It can recognize and avoid over 200 obstacle types, including animals and yard objects, ensuring safe operation in complex commercial settings.

r

• NRTK – Why use Network RTK – With Network RTK support, there’s no need to install any local antenna. Simply connect through the Navimow app, and your mower is ready. Enjoy effortless setup, instant accuracy, and true plug-and-play convenience. Access Network RTK eliminates the need for traditional physical base stations, delivering exceptional versatility across diverse environments. It provides high-accuracy GPS positioning over wide areas and in constantly changing conditions, freeing you from geographical constraints and infrastructure limitations. Compatible with multiple certified Network RTK providers, ensuring your mower automatically connects to the nearest and strongest signal source for optimal coverage and consistent accuracy.

r

• Precision Positioning – EFLS NRTK (NRTK + 360 degree vision + VIO) – Powered by triple-frequency Network RTK, 360° camera-based VSLAM, and Visual Inertial Odometry, Terranox achieves centimeter-level positioning accuracy. The system remains stable and reliable even in complex or partially obstructed environments.

r

rr

Specifications

r

r
• Max Mowing Area: 6 acres

r

• Time to Mow Max Mowing Area: 72 hours

r

• Dimensions: 33.5 × 24.0 × 13.8 in

r

• Net Weight: 66.02 lbs

r

• Locating System: EFLS™ NRTK (NRTK + 360° Vision + VIO)

r

• Object Detection System: VisionFence™ (360° RGB Camera + ToF)

r

• Driving Engine: 4WD with dual independent steering motors

r

• Noise Level: 68 dB(A)

r

• Protection Level: IP66

r

• Weather Adaptive: Weather Forecast + Rain Sensor

r

• Max Slope Ability: 84% (40°)

r

• Antenna Installation Required: N

r

• Auto-Mapping: Yes

r

• Auto-Recharge: Yes

r

• Vertical Passing Ability: 2.8 in (5.9 in for gentle slopes)

r

• Multi-Zone Management: 120

r

• GeoSketch: Yes

r

• Signal Enhancement Antenna Supported: Yes

r

• Battery Capacity: 25 Ah/540 Wh

r

• Charging Time: 180 min

r

• Full Charge Mowing Time: 180 min

r

• Mowing Area per Charge: .5 acre

r

• Cutting Height: .75 – 4″

r

• Cutting Height Adjustment Method: Auto

r

• Cutting Width: 17″

r

• Floating Cut System: Yes

r

• Anti-Clogging Cutting Disc: Yes

r

• Cutting Disc: 2 Discs, 12 Blades

r

• GPS Tracking: Yes

r

• Out-of-Boundary Alarm: Yes

r

• Lifted Alarm: Yes

r

• Proximity Unlock: Yes

r

• PIN Code: Yes

r

• Object Recognition: 200+

r

• Device & Charging System Warranty: 2 years

r

• Battery Warranty: 1 year

r

• Connectivity: Bluetooth & Wi-Fi & Cellular

r

• NRTK & Connect+ (Cellular Connection): 2 Years Free. Renewable Annually at $59.90

r

• Screen Display: 3.5″ Color LCD Screen

r

• OTA Updates: Yes
