Toro OEM 147-5175 Pivot Pin Roll Screw Fits Current Non-My-Ride Timecutter MAX and TITAN (With I-Beam Framing) Models (1/4 x 1.75 – 20)

Description

• TYPE: TORO OEM Roll Pin Screw
• SIZE: Standard 1/4 x1.75 – 20 Standard Thread Size

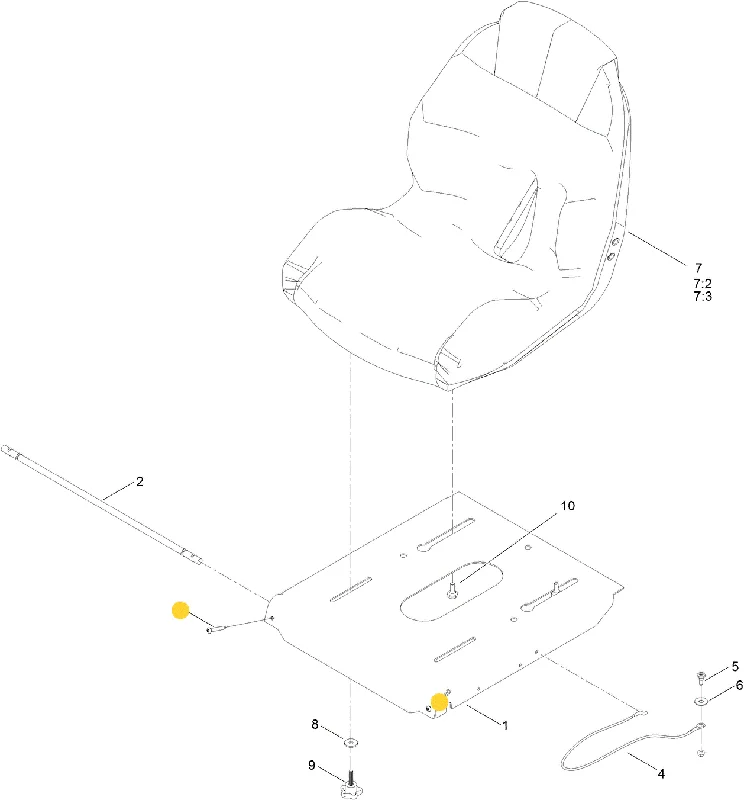

• APPLICATIONS: Used to Retain Seat Pan Pivot Rod Which is Used to Retain Pivot Pan to Mower Frame
• COMMON SERIES APPLICATIONS: Toro Current 42″, 50″, 54″, 60″ Timecutter MAX (Standard) Models. * Non – My-Ride Models. – Toro Current 48″, 54″, 60″ TITAN & TITAN MAX (Standard) Models. * Non – My-Ride Models.

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.

Model Fit:

TIMECUTTER

42” TIMECUTTER MAX (STANDARD) Series
– Model Numbers –
(* Model Numbers
77402)

50” TIMECUTTER MAX (STANDARD) Series
– Model Numbers –
(* Model Numbers
77501, 77505)

54” TIMECUTTER MAX (STANDARD) Series
– Model Numbers –
(* Model Numbers
77504, 77506)

60” TIMECUTTER MAX (STANDARD) Series
– Model Numbers –
(* Model Numbers
77601, 77604)

TITAN

48” TITAN Standard, My-Ride
(48” Newer/Current Models I-Beam Frame) –
48” Current Models –
(* Model Numbers 76401, 76420)

54” TITAN Standard, My-Ride
(54” Newer/Current Models I-Beam Frame)
– 54” Late/Current Models Only –
(* Model Numbers 76501)

60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame)
– 60”
Current Models –
(* Model Numbers 76604, 76605)
