Description

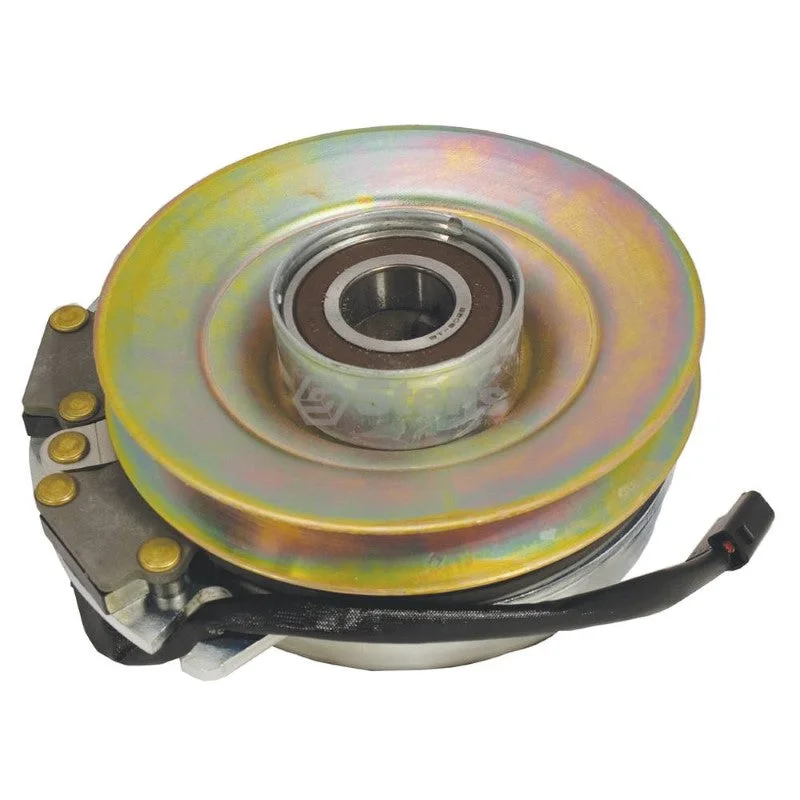

Xtreme PTO Clutch
Grasshopper 604182
REPLACES OEM
Ariens 03090800, 30908
Case IH C38410, WD-C38410
Craftsman C38410, WD-C38410
Cub Cadet C38410, WD-900-5716, WD-C38410, WD-C47449
Grasshopper 388766, 604182
Gravely 03090800, 30908
Ingersoll Rand C38410
Jacobsen C38410
MTD C38410, WD-900-5716, WD-C38410, WD-C47449
Toro 93-3160
Warner 5210-52, 5215-62
Woods 388766, 604182
FITS MODELS
Ariens Grand Sierra, 931037, 931038, 931302 and 931303
Grasshopper 718D, 718K, 720K, 721, 721D and 725
Gravely GT600, 987104
Toro 74140 and Proline 724-Z, Serial No. 590001-699999
Woods Mow ‘n Machines
SPECS
Cool Coil Technology
Does not fit all applications – Verify part number by referring to model specifications
Heavy Duty “FatBoy Series” Upgrade
Replaceable Pulley Bearing
Super Smooth “Xtreme Precision” Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer “Xtreme TOUGH” Integrated, Water Tight Wire Harness
Belt Width: Double A
ID: 1 1/8″
Pulley Diameter: 4 13/16″
Rotation Direction: Clockwise
